Why the Schibeci ST 600 C is the most versatile Stabilizing and milling attachment available

• Solid and Robust 1” thick frame.
• Schibeci has superior level/depth control due to the direct skid design.
• Able to load directly into standard dump trucks.
• The ST 600C level control is independent to the angle of the skid steer therefore accurate levels can be achieved.
• The St 600C has fluid ports onboard that can be used to spray stabiliser fluid/binder directly into the cutter box.
• The St 600C is over engineered and is extremely robust.
• There are very few spare parts required for Schibeci attachments.
• Schibeci ST series machines use direct hydraulic drive and do not use gearboxes or chains or any other forms of transferring power that can add to maintenance or reliability problems.
• Schibeci machines are user friendly and easy to operate.
• The ST 600C has a quick change tooling system that is commonly used in the industry



Specifications
Loader Requirements Hydraulics
Weight 1820kg
High Flow hydraulic Circuit 170 Lpm +
Cutting width 600mm
Auxiliary Circuit
55+ Lpm +
Max cut depth 150mm
Minimum High flow circuit relief valve setting
4200 PSI +
Number of Cutting tools 66
Maximum relief valve setting Auxiliary circuit
3000psi
Left/Right independent level control
High Flow Hydraulic couplers
Hydraulic Tilt
Minimum 3/4 inch
Float
Hydraulic
Hydraulic End gate/Moldboard
Low flow couplers
Hydraulic Side Shift
minimum 1/2 inch
Hydraulic Conveyor Lift
Case Drain Line
Hydraulic Conveyor Slew
•
Hydraulic Conveyor Drive
•
Detachable Conveyor
•
Water Spray bar
•

Schibeci ST600C

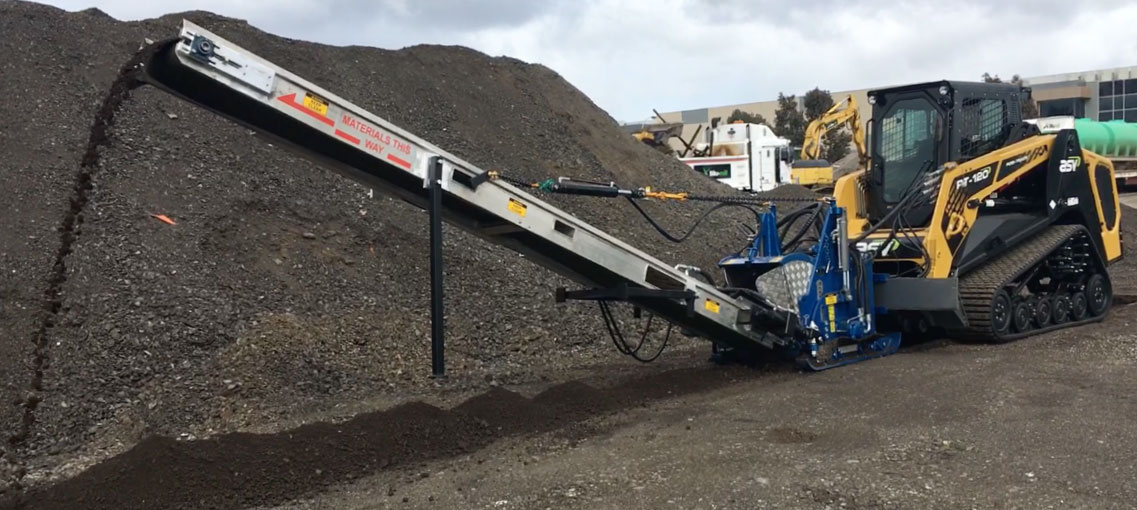

Schibeci ST600C on a PT120
