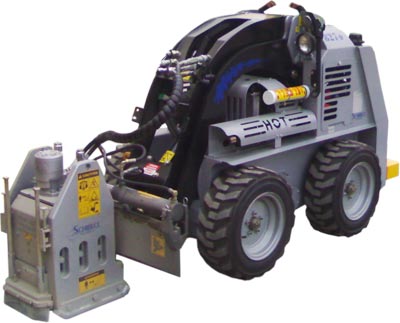

Schibeci 827D

Operate outdoors or onsite with your 20kW Diesel
Flexibility
- Work on any job site in any location
- Outdoor, Indoor and Multilevel
- Small enough to fit into elevators
 All processes are possible:
- Bulk Stock Removal
- Tile Removal
- Texturing
- Grinding and Polishing

Suitable Schibeci Attachments:
Power Profiler 2500R Planetary 9800

Polyplaner 300 RM150 Trimmer 7000 Slasher 1400HD

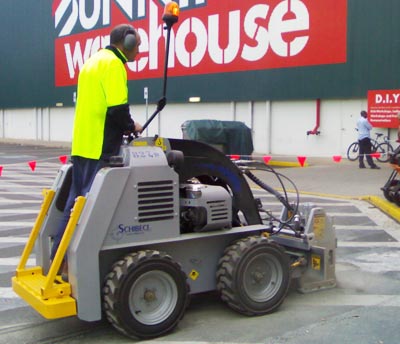

Schibec 827D with Power Planer 3000 Attachment
 Specifications
Engine
Make
Kubota Diesel
Power
20kW

Performance
Hydraulic Pumps
1
Hydraulic Relief Pressure
3400 psi
Hydraulic Pump Output
47 l/min (12.5 gal/min)
Rated Lift Capacity
SWL: 450kg (990 lbs)
Tyres
White non Marking (Optional Black Lugged)

Dimensions
Overall Width
1140mm (44 Inches)
Overall Height
1512mm (60 Inches)
Overall Length
2300mm (90 Inches)
Machine Weight
1236kg (2719 lbs)
Tools Used...

Tungsten Carbide Cutting Teeth/Picks

Metal Bonded Diamonds

Resin Bonded Diamonds

Tapered Diamond Plugs

Carborundum

Vinyl Removal Tool


Above: Schibeci 827D with onboard Vac for cleanup
Polyplaner 300 Line removal on Schibeci 827D


Above: Schibeci 827D with Power Profiler 2500R Recessing Asphalt in preparation for a tactile inlay.
 Schibeci 827D with the Power Planer 3000 used for Line Removal
