Power Profiler 2500R (Hydraulic Version)



Power Profiler 2500-R

Designed for bulk removal of concrete, ceramic tiles and epoxy mortar toppings.

"The robust design of the Schibeci Power Profiler allows the toughest concrete removal process to be efficient, precise and highly productive in the toughest conditions."

Performance Guidelines
• Removes up to 38mm (1 1/2 inch) thick concrete surfaces
  (per pass)
• Removes up to 38mm (1 1/2 inch) thick mortars
• Prepares concrete surfaces for various applied finishes
• Removes ceramic tiles including underlayments in one pass




Tungsten Carbide Cutting Teeth/Picks used
The Power Profiler 2500-R is designed to be used with the Schibeci 827DE and
Low Flow Skid Steers. The 2500-R can also be suited to Excavators and Backhoes.


Power Profiler 2500R
High Production Tile Removal

Power Profiler 2500-R on a Schibeci 827DE

Specifications
Power Profiler 2500-R
Hydraulic Flow Required
40+lpm (11+gpm)
Pressure Range
150 to 206 Bar (2200 to 3000PSI)
Can be suited to 350 Bar (5000PSI)
Hydraulic Horsepower Required
15 to 150KW (20 to 200HP)
Profiling Width
250mm (10 inches)
Profiling Depth
38mm (1 1/2inches)
Number of Cutting Tools
36
Side Shift
Hydraulic
Independent Level Control
•
Floating Turntable
•
Dust Suppression System
•
Material Extraction System
•
Interchangeable wear strips on skid plates
•
Quick change tooling system
•
Long lasting carbide tooling system
•


Power Profiler 2500-HR on a Schibeci 827DE

Power Profiler 2500-R trenching a failed section of floor


 Power Profiler 2500-R removing 10mm of concrete


Schibeci 850DE with the Power Profiler 2500R
Removing tiles at Sydney International Airport

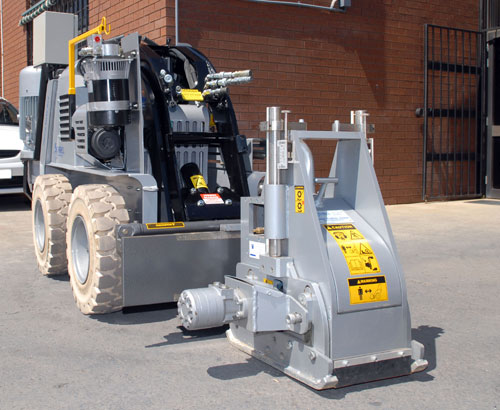

Schibeci 827DE with the Power Profiler 2500R
Accurately removing asphalt from a train station in preparation for a tactile inlay.
